 Post subject: Simple Sniper Board Mod
PostPosted: Sat Feb 06, 2010 5:51 am
Offline
Galapagos
Galapagos

Joined: Sun Jan 31, 2010 8:58 pm
Posts: 111
I really like these little boards but the need to disconnect the battery to turn the board ON & OFF is a bit of a pain in the butt as well as it having the potential to break a wire or wear the snap out so I do a little mod on the board to allow the supplied ON OFF sensor switch to become the ON OFF for power.

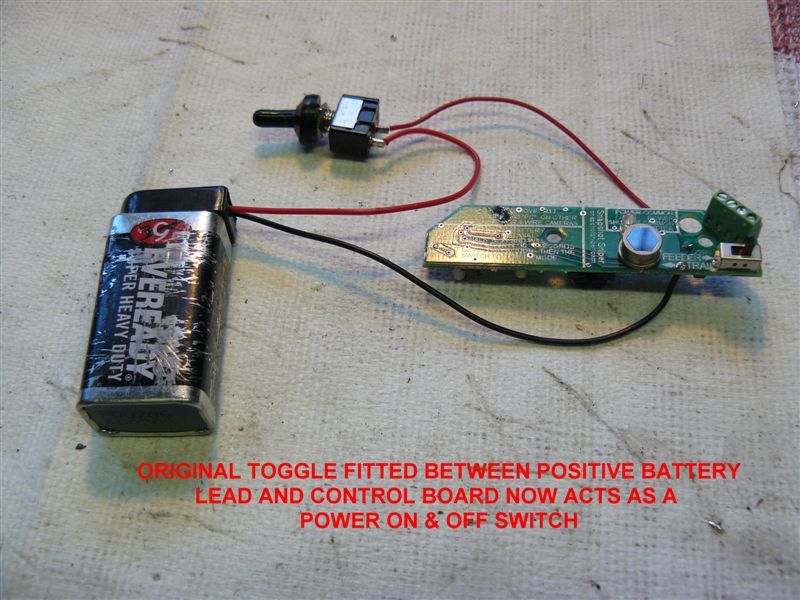

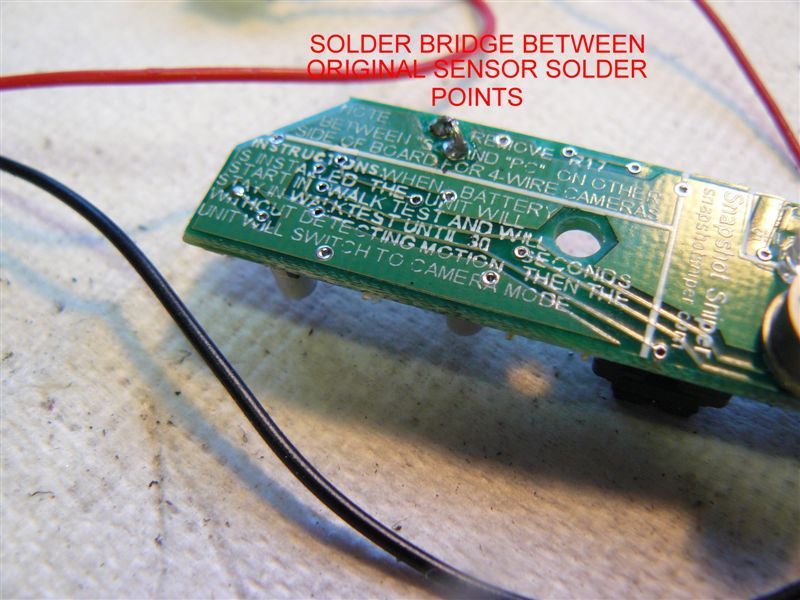

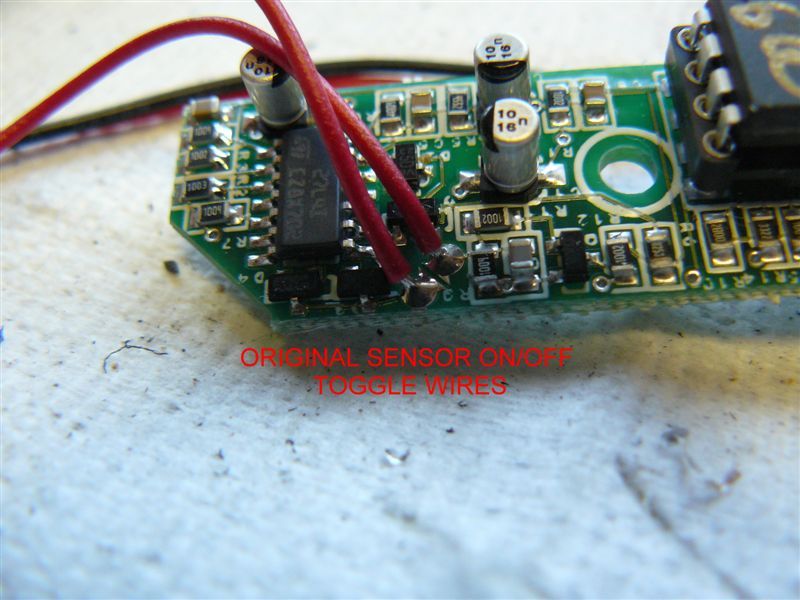

It's only a 5 minute job and just involves de-soldering the 2 sensor toggle wires from the board, doing a solder jumper over the solder points for those wires and then using the toggle switch as a power ON OFF by soldering it into the positive wire on the battery snap between the board and the 9V battery. This way flipping the toggle turns the board on & off and the sensor is permanently on. As the board starts in Walk-Test anyway this is no big deal with the only minor downside being you may get a few pics of yourself taking the unit off the tree before you can open the case up and turn the board off.

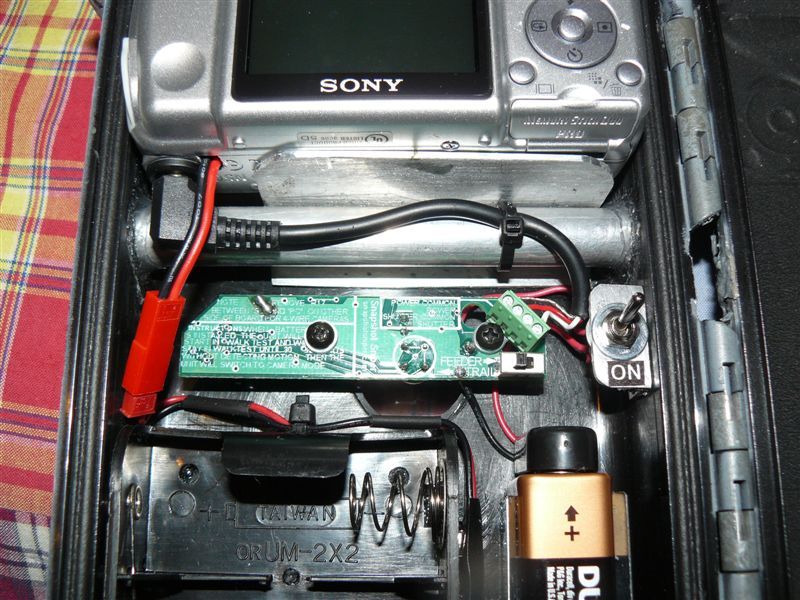

I also put the ON OFF toggle inside the case on a little alloy bracket to avoid the possibility of some clown who has discovered my TC turning it off via an external switch. Here's a few pics of the Simple Sniper ON OFF mod that I do. Well worth giving a go and IMO it makes a great little controller even better. Cheers from Down Under

35Whelen







Top
 Profile
Reply with quote
PostPosted: Sat Feb 06, 2010 6:15 am
Offline
Moderator
Moderator
User avatar

Joined: Sun Jan 31, 2010 4:39 pm
Posts: 1419
Thanks Doug, that's what I did to mine as well I like the walk test feature that you retain with this set up. Thanks for posting it!

_________________
JCTA- Joe's Custom Trailcam Accessories


Top
 Profile
Reply with quote
PostPosted: Sat Feb 06, 2010 6:31 am
Offline
Emperor
Emperor

Joined: Mon Feb 01, 2010 6:21 am
Posts: 715
Nice job Doug. Thanks


Top
 Profile
Reply with quote
PostPosted: Mon Feb 08, 2010 9:43 am
Offline
Fledgling
Fledgling

Joined: Mon Feb 01, 2010 11:52 pm
Posts: 73
Location: Minot, ND
yep first got this from one of your posts on hags. probably my favorite mod yet and it's so simple!


Top
 Profile
Reply with quote
PostPosted: Mon Feb 08, 2010 9:59 am
Offline
Emperor
Emperor
User avatar

Joined: Sun Jan 31, 2010 8:56 pm
Posts: 1041
I got word from the master that the SS2 will have a different switch. It will have a 3 way switch Trail Off Feeder. Then no external switch needed


Top
 Profile
Reply with quote
PostPosted: Mon Feb 08, 2010 2:26 pm
Offline
Emperor
Emperor

Joined: Mon Feb 01, 2010 3:38 pm
Posts: 1123
Location: North Carolina
kdornski wrote:
I got word from the master that the SS2 will have a different switch. It will have a 3 way switch Trail Off Feeder. Then no external switch needed



That would be a nice upgrade, wonder when they'll be available?


Top
 Profile
Reply with quote
PostPosted: Mon Feb 08, 2010 2:27 pm
Offline
Emperor
Emperor

Joined: Mon Feb 01, 2010 3:38 pm
Posts: 1123
Location: North Carolina
Also couldn't you just put a 3-way toggle in place of the one he sends and have the same thing?


Top
 Profile
Reply with quote
PostPosted: Tue Feb 09, 2010 9:05 am
Offline
Fledgling
Fledgling

Joined: Tue Feb 09, 2010 6:06 am
Posts: 9
Location: PA
Great post. Very helpful to me. Thanks Doug

_________________
Take responsibility for your actions


Top
 Profile
Reply with quote
PostPosted: Tue Feb 16, 2010 3:16 pm
Offline
Royal
Royal
User avatar

Joined: Mon Feb 01, 2010 12:30 pm
Posts: 358
I did the same but replaced it with the black 9V holder with the on/off switch.


Top
 Profile
Reply with quote
PostPosted: Sun Feb 21, 2010 8:15 pm
Offline
Fledgling
Fledgling

Joined: Thu Feb 04, 2010 10:02 pm
Posts: 4
Thanks, I'm gonna try it on my next SS build.

Johnson
