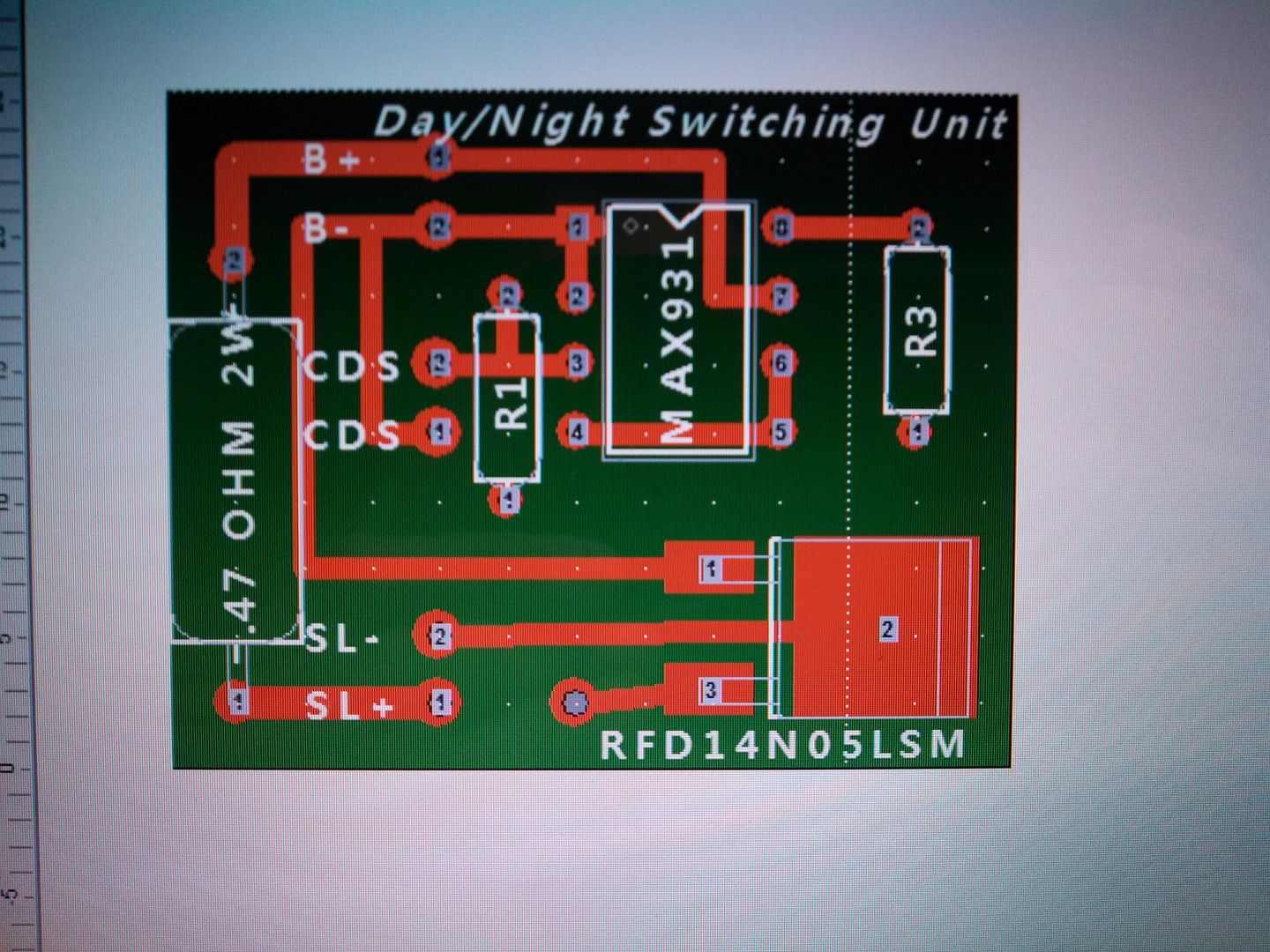

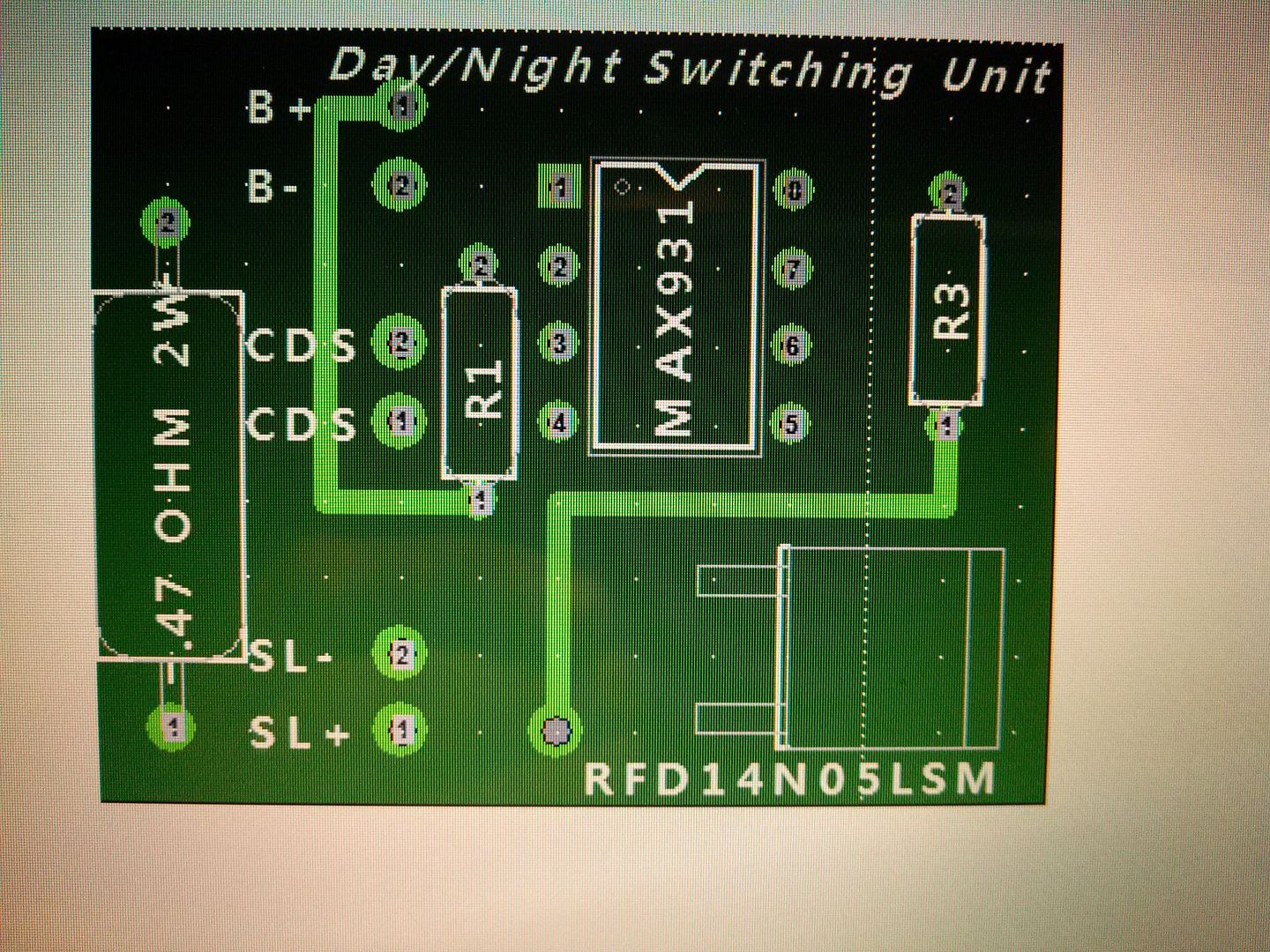

Lots of questions coming to my PM box about this circuit. Here is the circuit schematic if someone want to do one on a breadboard. The 330k resistor needs to be changed to a 200k resistor for it to function on 6v set up and come on at dusk and turn off at dawn correctly. Here is a list of parts needed to complete one board. I had some of these boards made up with DKirk's permission of course if you guys need these. This is the board you need if you are doing one of the remote slave flashes triggered by the radio signal RF......

http://WWW.DIGIKEY.COM

1 EACH OF THE FOLLOWING PARTS

#MAX931EPA+-ND CONTROL CHIP
#P0.47W-2BK-ND .47 OHM 2 WATT RESISTOR
#CMF200KQFTR-ND 200K RESISTOR
#CMF4.64KQFTR-ND 4.6K RESISTOR
#PDV-P9005-ND CDS SENSOR
#RFD14N05LSM-ND SURFACE MOUNT MOSFET
