cable flash from canon to nikon

[luca93]

hello everyone

i need help, i had seen some schematics on the net but they weren't working, someone use canon reflex camera bodies and nikon flash, using cable flashes without triggers? what scheme did you use to connect the flashes?
thank you so much

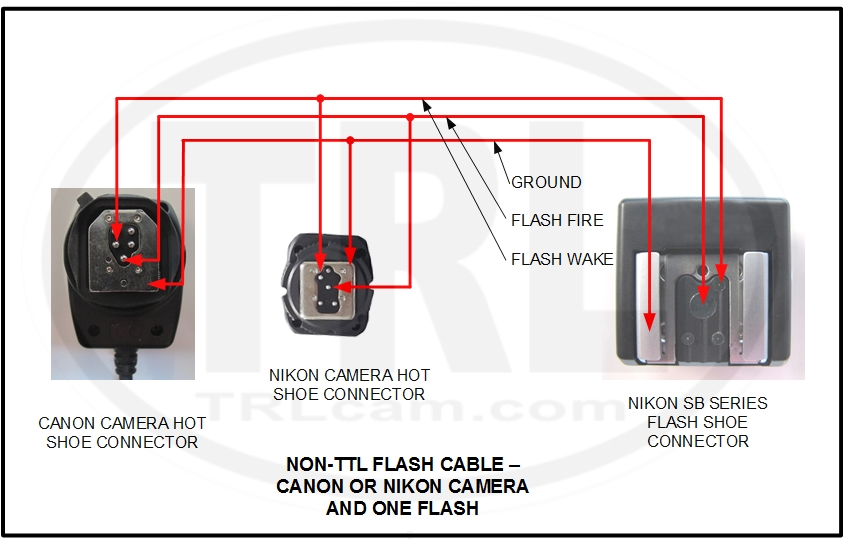

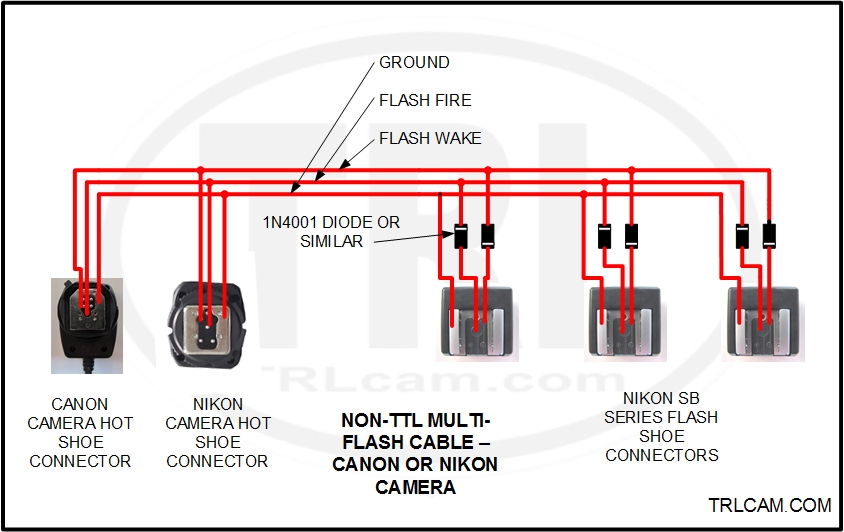

[-jeff]

[westcocanuck2]

Very well illustrated Jeff.

[luca93]

thanks for the help, we tried to build it, but with canon 1dx and canon 6d it does not wake up the flash at the first shot but only at the second .. can you help me?

[-jeff]

Can you post a picture or two of your wiring?

[luca93]

we followed the pattern you entered on an equal footing, the flash starts only at the second shot, it can't wake him up in time I don't know if the machine is too fast or for what

[-jeff]

Without seeing your setup, it's hard to troubleshoot remotely. So, connect your flash to the camera with your cable. Open all your connections, take a voltmeter and start from the camera and measure the voltage on the wake pin. With the shutter pressed half way down, you should see between 3 and 4 volts. That voltage will stay until the camera returns to the sleep mode. Then move down your wiring and check the same place on your remote hotshoe before the isolation diode and after the diode. You should see close to the same voltage. Somewhere between the camera and the flash there is a break.
