Is there a Hot Shoe to PCB?
-
greengrass
- Posts: 545
- Joined: Tue Jul 03, 2012 6:42 pm
- Location: New Hampshire (USA)
Is there a Hot Shoe to PCB?
Looking to make my own flash transmitter circuit board that connects to the hot shoe of a camera. Is there a hot shoe to PCB component? Haven't been able to find one and would prefer to avoid soldering wires to the circuti board from the hot shoe. Even something with a cable coming off would work. I could make my own but would prefer not to.
-
greengrass
- Posts: 545
- Joined: Tue Jul 03, 2012 6:42 pm
- Location: New Hampshire (USA)
Re: Is there a Hot Shoe to PCB?
Even something like this could work
You do not have the required permissions to view the files attached to this post.
-
-jeff
- Posts: 1420
- Joined: Thu Dec 15, 2011 10:30 pm
- Location: Nebraska
- Contact:
Re: Is there a Hot Shoe to PCB?

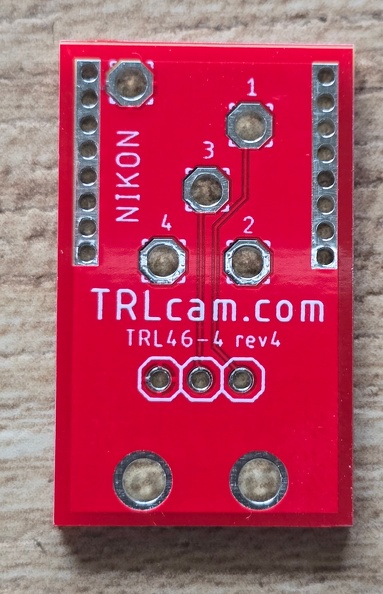

Here is what I use. This is a pc board that brings out the metering, flash trigger and ground pins. The contact is made using pogo pins. (not shown in picture)
-
greengrass
- Posts: 545
- Joined: Tue Jul 03, 2012 6:42 pm
- Location: New Hampshire (USA)
Re: Is there a Hot Shoe to PCB?
Grr that exactly what I was hoping to avoid making but I suppose I will. Jeff you are always one step ahead!!
-
-jeff
- Posts: 1420
- Joined: Thu Dec 15, 2011 10:30 pm
- Location: Nebraska
- Contact:
-
greengrass
- Posts: 545
- Joined: Tue Jul 03, 2012 6:42 pm
- Location: New Hampshire (USA)
Re: Is there a Hot Shoe to PCB?
